Compound shapes with algebra

Form and fully simplify an algebraic expression for the area of a compound shape (an L-shape, a rectangle with a rectangular hole, a kite, or a trapezium) whose side lengths are algebraic terms or expressions, then solve for an unknown side length when a target area is given.

Worksheet Builder All resources ☕ Shout us a flat white Download All

Te reo Māori terms

click each term to open in Te Aka

Learning objective overview

Master Teaching Guide coverage for this objective.

Current NZC (2007)
  • GM5-3
  • NA5-7
New NZC (2026)
  • NZC26-P4-ALG-ER-P-Y10-01

Resources

Terminology

  • expression
  • simplify
  • compound shape
  • like terms
  • expand

Task goals

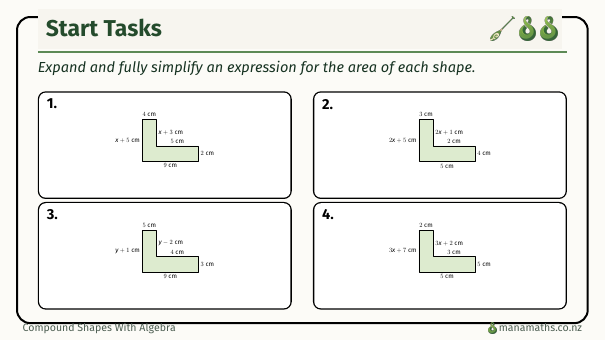

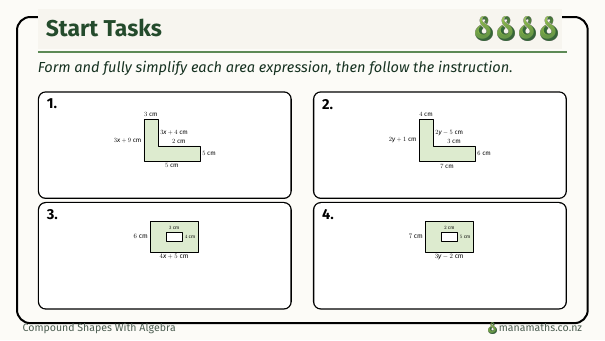

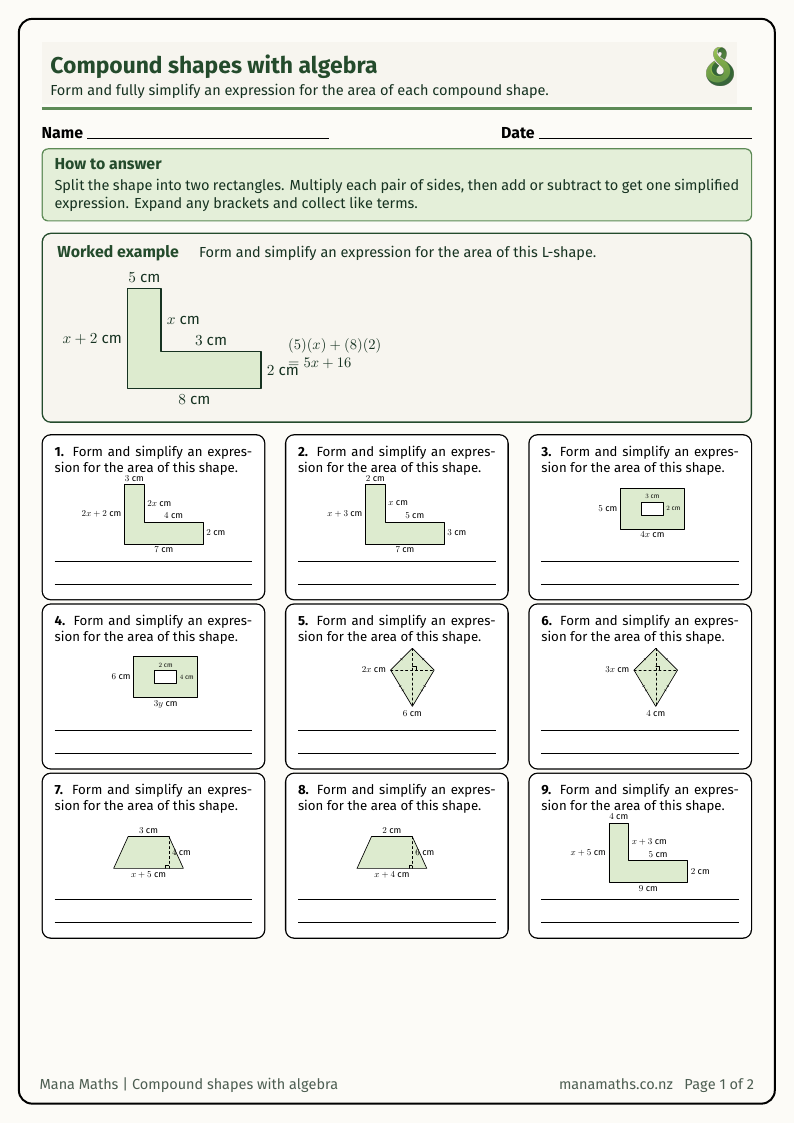

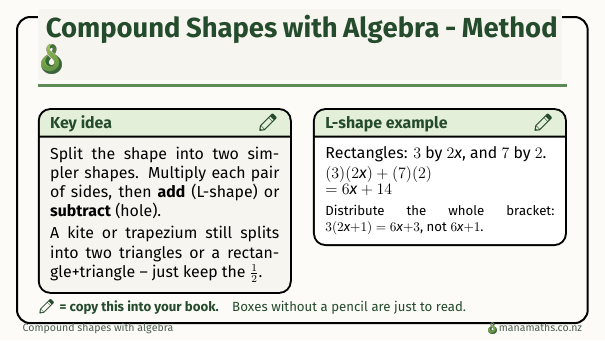

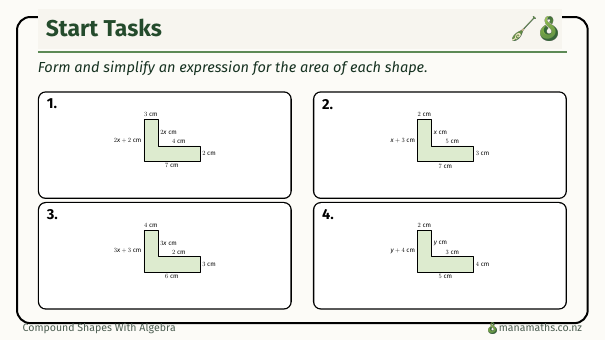

  • Split a compound shape (an L-shape, a rectangle with a rectangular hole, a kite, or a trapezium) into simpler shapes (rectangles, or two triangles) before writing any algebra.
  • Write each simpler shape's area as a product (or half-product) of its labelled sides, using algebraic terms or expressions rather than numbers.
  • Expand any brackets and collect like terms to reach one fully simplified expression for the area.
  • Set a simplified expression equal to a given area and solve the resulting linear equation for the unknown.
  • Use a solved value in a follow-up calculation, such as finding the perimeter or evaluating the expression at a different given value.

Where this fits

What leads into this objective, and where it goes next.

You are here

Compound shapes with algebra

Compound shapes with algebra

Do

Simplifying and manipulating algebraic expressions involving sums, products, differences, and positive integer powers, by: collecting like terms; factorising using common factors; factorising quadratic expressions with a leading coefficient of 1; expanding products, including multiplying a single term by a bracketed term, and multiplying two expressions each of the form ax + b, where a and b are integers; factorising by grouping (i.e. using the distributive law) (e.g. x^2 + 2x − 8 = x^2 + 4x − 2x − 8 = x(x + 4) − 2(x + 4) = (x − 2)(x + 4))

Statement▸
Year 10 · Algebra · Equations and relationships
NZC26-P4-ALG-ER-P-Y10-01

Explore the whole sequence →
