Drawing nets of 3D

Draw, label, and identify accurate flat nets for cuboids, cubes, triangular prisms, and square-based pyramids.

 All resources Download All

Te reo Māori terms

click each term to open in Te Aka

Related resources in Other

Learning objective overview

Master Teaching Guide coverage for this objective.

Resources

Terminology

  • net
  • face
  • edge
  • vertex
  • cuboid
  • cube
  • triangular prism
  • square-based pyramid
  • fold
  • unfold
  • cross-section
  • dimension

Task goals

  • Identify which flat net folds up into a given 3D solid, and which does not.
  • Draw an accurate labelled net for a cuboid, cube, triangular prism, or square-based pyramid from given dimensions.
  • Use a net to identify opposite, adjacent, and matching faces of a solid.
  • Apply net dimensions to find the total area of material needed to build a solid.

Key skills

  • Identify net of solid
  • Match net to solid
  • Draw labelled net
  • Faces edges vertices
  • Cross section from net

Quick stats

  • 81 total questions
  • 3 difficulty levels
  • Answers included
Open terms PDF

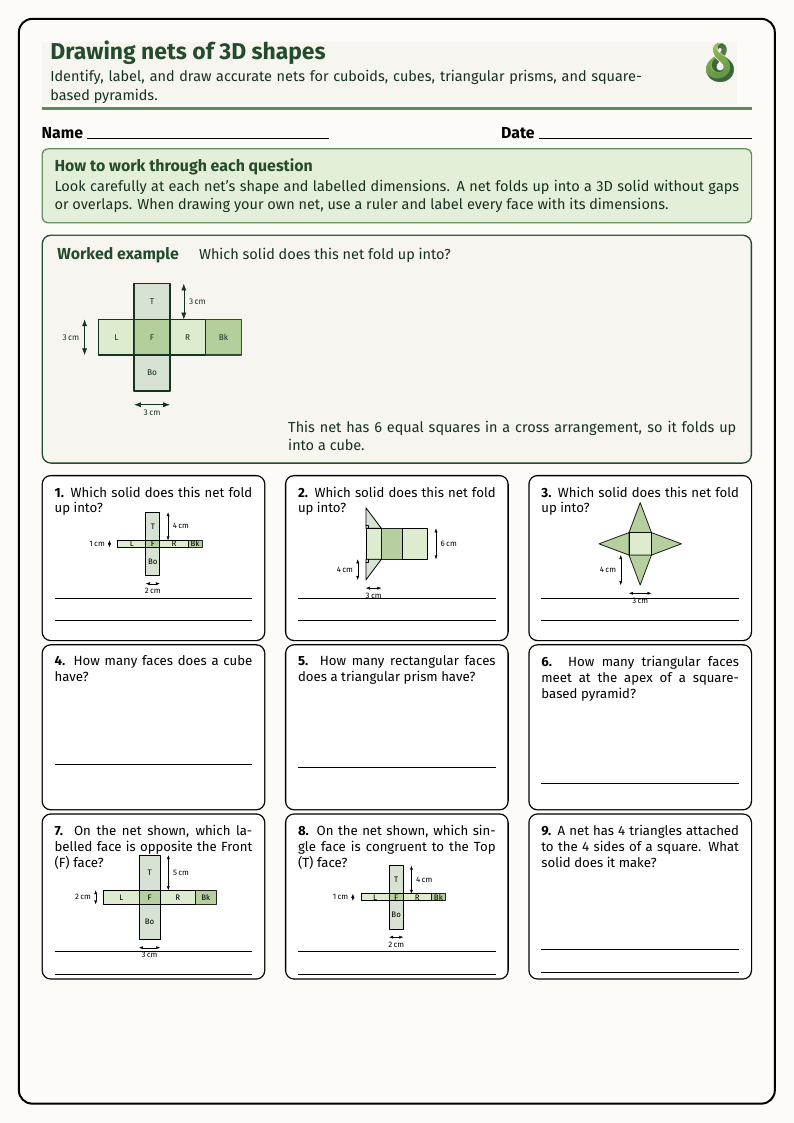

Open worksheet PDF Open solutions PDF
Open tasks PDF Open solutions PDF

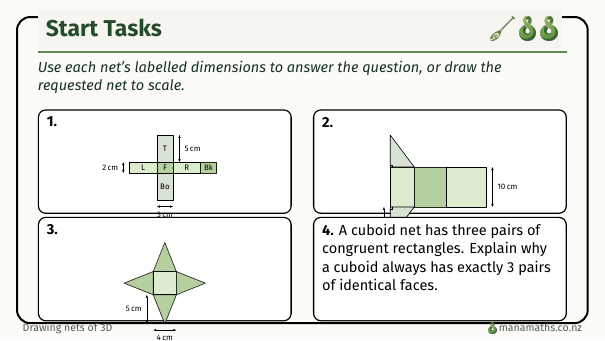

Open tasks PDF Open solutions PDF
Open tasks PDF Open solutions PDF

For teachers

Need the fuller teaching notes for this objective? Open the Teacher guidance PDF.
