Tree diagrams

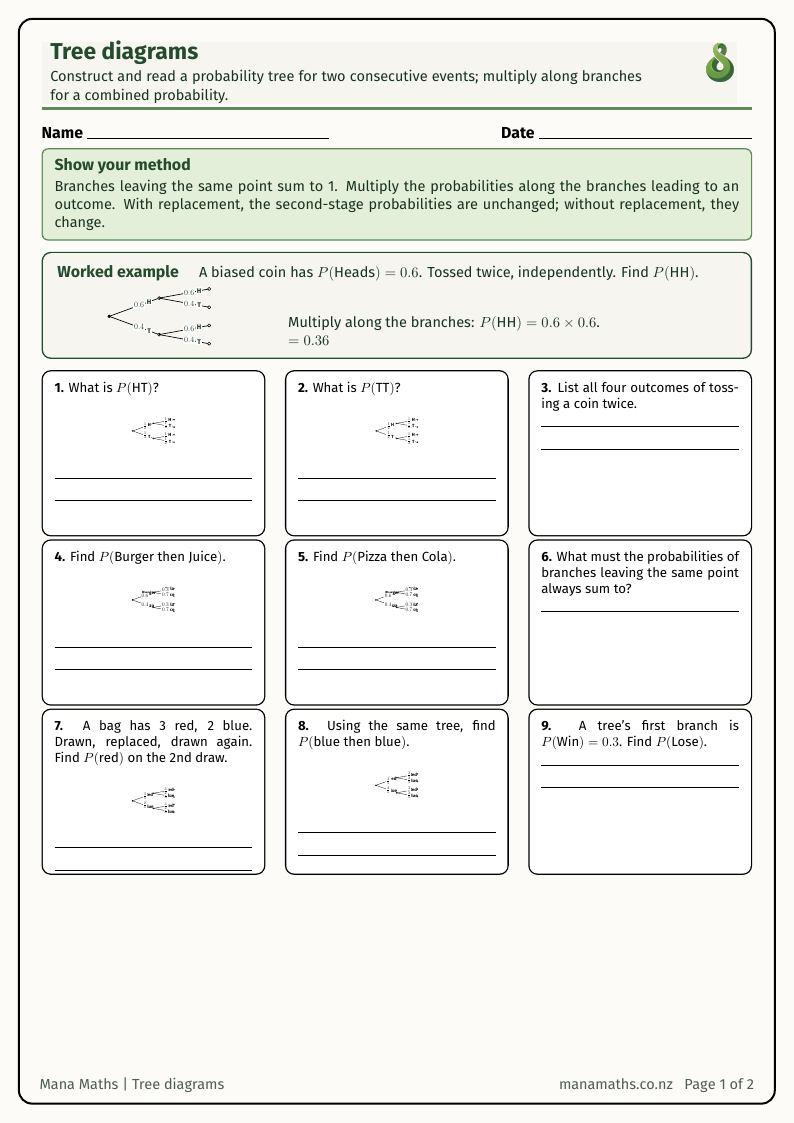

Construct and read a probability tree diagram for two consecutive events, with each branch labelled by a probability (not a count -- distinct from LO2's frequency tree); find a combined-event probability by multiplying along the branches leading to it, and distinguish "with replacement" (independent events, unchanged second-stage probabilities) from "without replacement" (dependent events, second-stage probabilities change because an item is removed).

 Worksheet Builder All resources ☕ Shout us a flat white Download All

Te reo Māori terms

click each term to open in Te Aka

Related resources in Statistics

Open notes PDF
Open terms PDF
Open worksheet PDF Open solutions PDF
Open tasks PDF Open solutions PDF
Open tasks PDF Open solutions PDF
Open tasks PDF Open solutions PDF

Learning objective overview

Master Teaching Guide coverage for this objective.

Current NZC (2007)
  • S5-4
  • S6-3
New NZC (2026)
  • NZC26-P4-PRO-ETP-K-Y9-04

Resources

Terminology

  • Probability tree
  • Branch
  • Combined event
  • Independent event
  • Dependent event
  • With replacement
  • Without replacement

Task goals

  • Construct and read a two-stage probability tree diagram, where each branch is labelled with a probability and every pair of sibling branches sums to 1.

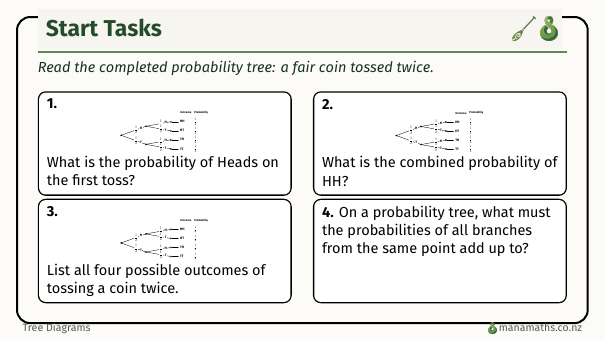

  • List every possible outcome of two consecutive events (e.g. HH, HT, TH, TT) and find the probability of a combined outcome by multiplying the probabilities along its branches.

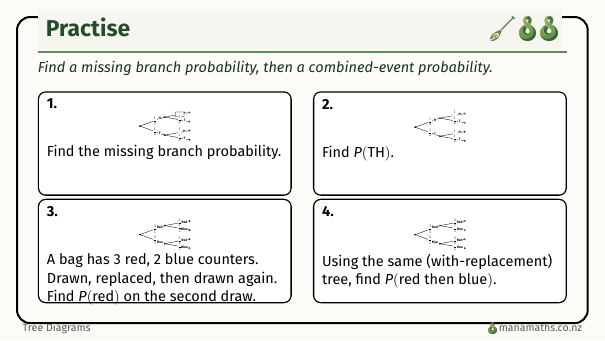

  • Find a missing branch probability using the fact that probabilities leaving the same point sum to 1.
  • Distinguish "with replacement" (independent events -- the second-stage probabilities are unchanged) from "without replacement" (dependent events -- the second-stage probabilities change because an item has been removed from the total).

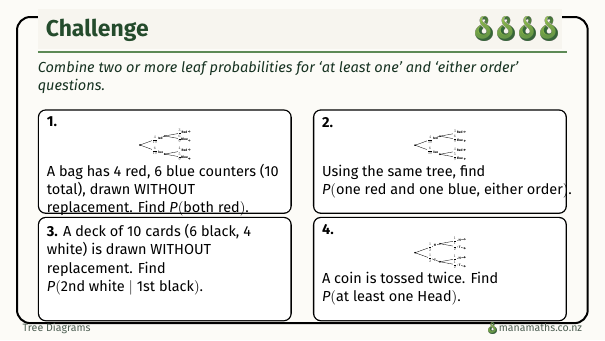

  • Find the probability of "at least one" outcome, or of an outcome occurring in either order, by combining (adding) more than one leaf's combined probability.
