Reading and forming parabolas in vertex form y = a(x - h)^2 + k where a is not 1

Read the vertex, axis of symmetry, opening direction, and width from a parabola's equation in vertex form y=a(x-h)^2+k where a is not 1, and work backwards from given features such as a vertex, points, or roots to write the equation.

All resources Download All ⬇

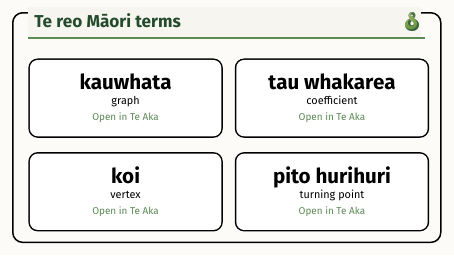

Te reo Māori terms

click each term to open in Te Aka

Learning objective overview

Master Teaching Guide coverage for this objective.

Resources

Terminology

  • vertex form
  • vertex
  • axis of symmetry
  • x-intercept
  • y-intercept
  • opening direction
  • narrower / wider than y = x^2

Task goals

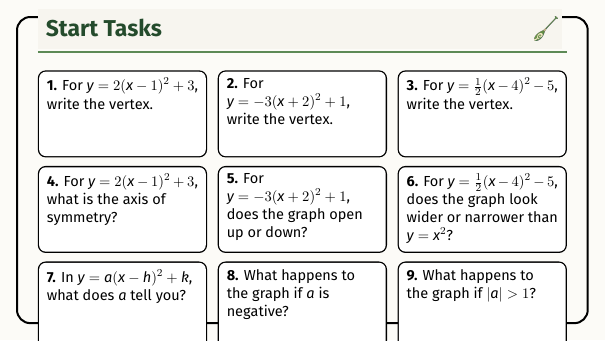

  • Read the vertex, axis of symmetry, opening direction, and width (narrower/wider than y=x^2) directly from an equation in vertex form y=a(x-h)^2+k.

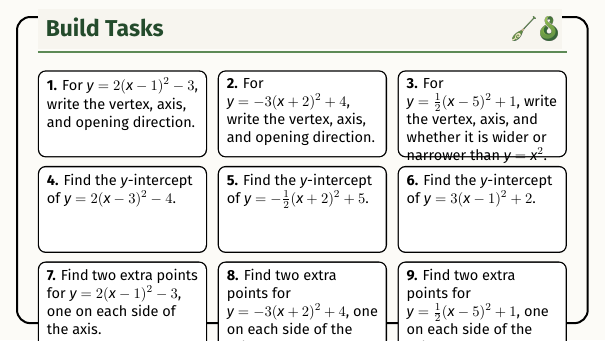

  • Substitute values of x into y=a(x-h)^2+k to find corresponding y-values, including the y-intercept at x=0.
  • Find two extra symmetric points either side of the axis of symmetry.
  • Solve a(x-h)^2+k=0 to find the x-intercepts, or explain why none exist.

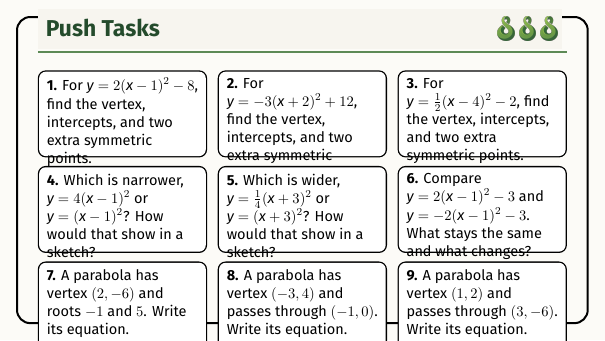

  • Given a vertex and one other point on the parabola, write the equation in vertex form, including solving for an unknown a.
  • Given a vertex and both roots (x-intercepts), write the equation in vertex form.
  • Compare or reason about how changing a affects the width, opening direction, or steepness of a parabola without changing its vertex.

Teaching guidance

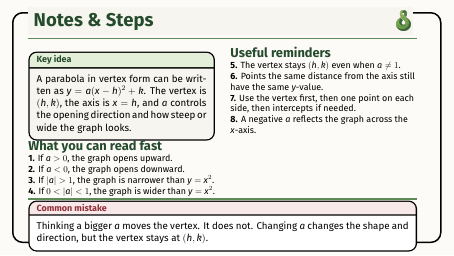

  • Extends sketching a parabola from vertex form (T4_LO17, a = 1 only) to a is not 1: the vertex (h, k) still reads directly from y = a(x - h)^2 + k, and x = h is still the axis of symmetry, but a now also controls whether the parabola opens up (a > 0) or down (a < 0), and whether it is narrower (|a| > 1) or wider (|a| < 1) than y = x^2.
  • This page's task decks (OBJECTIVES/lo-graphing-parabolas-a-1) cover: reading off vertex/axis/opening direction/width from vertex form; finding the y-intercept (substitute x = 0); finding two extra symmetric points either side of the axis; solving a(x - h)^2 + k = 0 for the x-intercepts (or explaining why none exist); and, at proficient/excellence tier, working backwards -- given a vertex and one point, or a vertex and both roots -- to write the equation in vertex form, including solving for an unknown a.
  • The Master Guide's own citation list for this entry (10MAT-ALGEBRA-SKILLS-GRAPHS-EX03) also lists table-of-values plotting, cubic graphs, reciprocal graphs, and estimating the gradient of a curve -- none of those are covered by this page, which is scoped to vertex-form parabolas only; recorded here as a scope gap for future dedicated LOs if ever built.

Key skills

  • Graphing
  • Parabolas
  • a ≠ 1
  • Vertex form
  • Axis of symmetry
  • x-intercepts

Quick stats

  • 81 total questions
  • 3 difficulty levels
  • Answers included
